Magnitude |
:2.5 |
| Date & Time (UTC) | 2016-11-23 16:33:59.4 |
| Date & Time (Local) | 1395/9/3 20:03:59.4 |

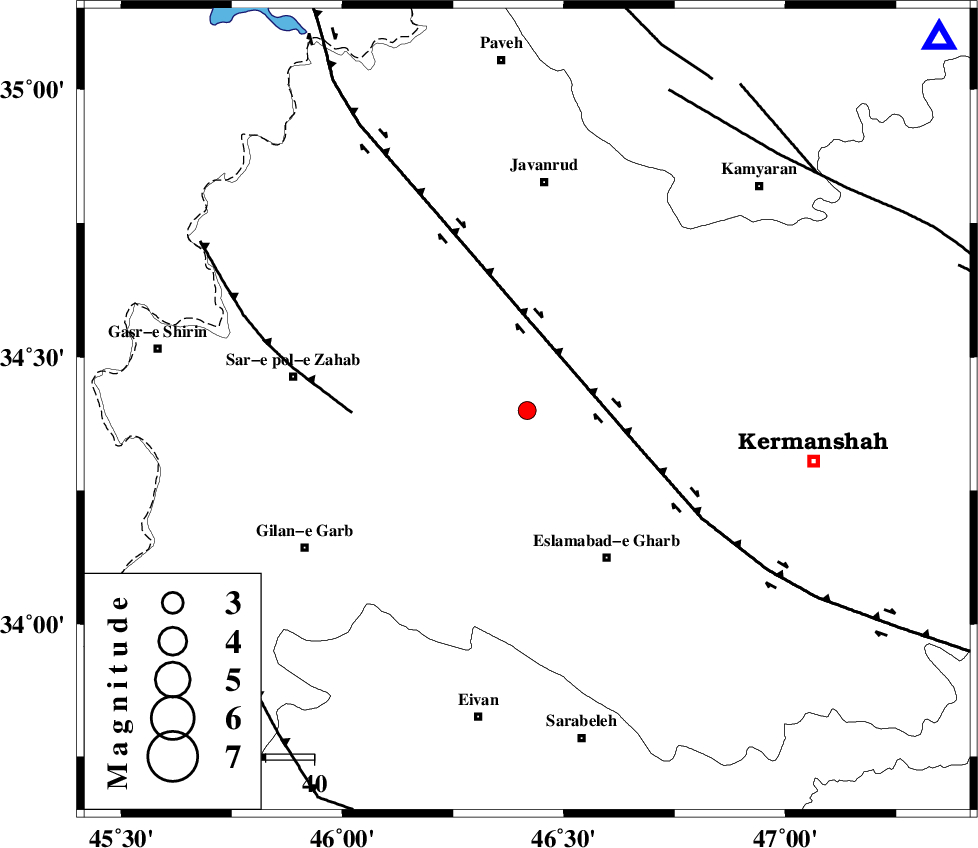

| Location | Lat:34.4 Lon: 46.417 |
| Region | Kermanshah Province, 35 km North-West of Eslam Abad-E-Gharb |
Nearest Cities |
|
| 3 km North of Gahvareh, Kermanshah Province | |
| 14 km of Zavleh olia, Kermanshah Province | |
| 21 km South West of Kuzran, Kermanshah Province | |
| 21 km North East of Kerend, Kermanshah Province | |
| 24 km North of Khosroabad, Kermanshah Province | |
| Depth | 6 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 20 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 36 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 73 km | |
| Number of Phases | 7 |
| RMS | 0.3 |
| Number of Stations | 5 |
| Error in Latitude | >4.6 km |
| Error in Longitude | 9.6 km |
| Error in Depth | 5.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 111005 | IIEES | ILBA | N | 125.3 | 0.34 | 2016-11-23 16:34:28 | 2016-11-27 09:46:00 | n |
| 111006 | IIEES | SNGE | N | 271.4 | 0.54 | 2016-11-23 16:34:35 | 2016-11-27 09:46:00 | n |
| 111007 | IIEES | SNGE | E | 228.5 | 0.34 | 2016-11-23 16:34:36 | 2016-11-27 09:46:00 | n |
| 111008 | IIEES | ASAO | N | 9.5 | 0.51 | 2016-11-23 16:35:46 | 2016-11-27 09:46:00 | n |
| 111009 | IIEES | ASAO | E | 11 | 0.51 | 2016-11-23 16:35:47 | 2016-11-27 09:46:00 | n |
| 111010 | IIEES | KHMZ | N | 7.9 | 0.44 | 2016-11-23 16:35:51 | 2016-11-27 09:46:00 | n |
| 111011 | IIEES | KHMZ | E | 10.1 | 0.5 | 2016-11-23 16:35:51 | 2016-11-27 09:46:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2016-11-23 16:34:14 | -0.35 | y | 88.2 | 193 | |||
| IIEES | ILBA | N | Sg | E | 2016-11-23 16:34:26 | 0.35 | y | 88.2 | 193 | |||
| IIEES | SNGE | Z | Pg | E | 2016-11-23 16:34:19 | -0.21 | y | 115 | 48 | |||
| IIEES | SNGE | N | Sg | E | 2016-11-23 16:34:34 | 0.2 | y | 115 | 48 | |||
| IIEES | ZNJK | Z | Pn | E | 2016-11-23 16:34:48 | 0.22 | y | 325 | 39 | |||
| IIEES | ASAO | Z | Pn | E | 2016-11-23 16:34:49 | 0.13 | y | 332 | 86 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-11-23 16:34:49 | -0.34 | y | 336 | 102 | |||
