Magnitude |
:3.1 |
| Date & Time (UTC) | 2016-11-20 22:50:50.2 |
| Date & Time (Local) | 1395/9/1 02:20:50.2 |
| Location | Lat:34.972 Lon: 45.763 |
| Region | Iraq, 24 km North of Tazehabad |
Nearest Cities |
|
| 20 km West of Markhil, Kermanshah Province | |
| 23 km North West of Dehsheykh, Kermanshah Province | |
| 24 km North of Tazehabad, Kermanshah Province | |
| 24 km North of Tappeh rash, Kermanshah Province | |
| 29 km North of Gardehnu, Kermanshah Province | |
| Depth | 15 km |
| Agency | |

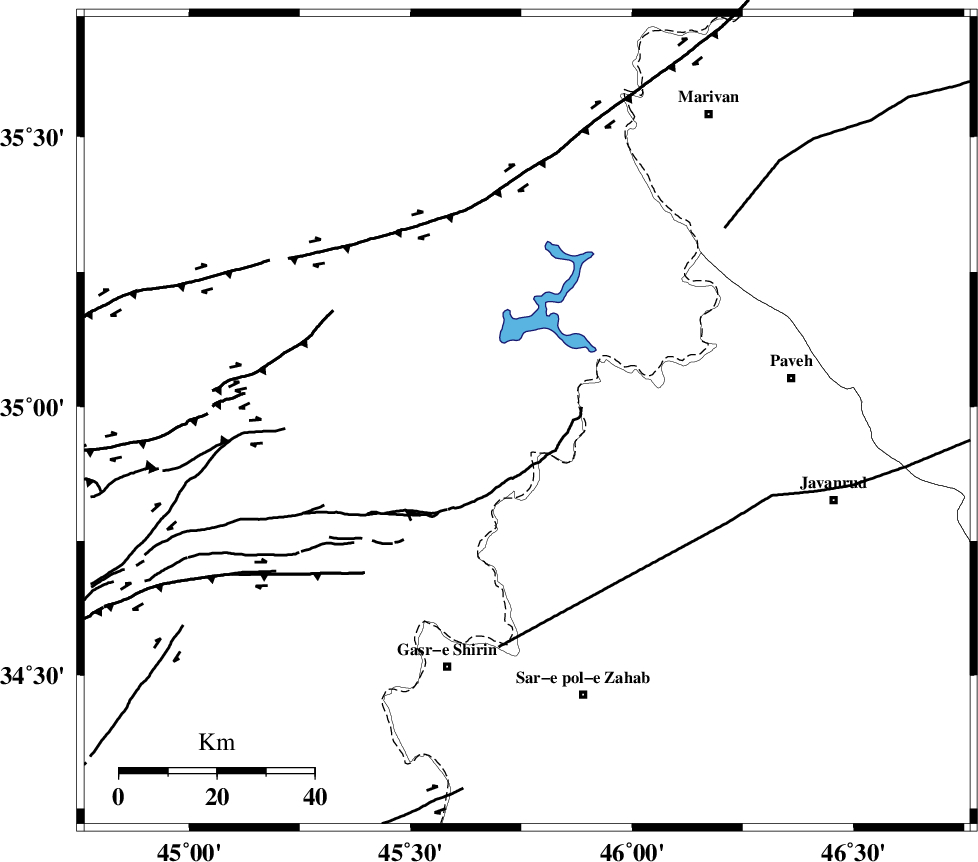

Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 20 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 29 km | |
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 69 km | |
| Number of Phases | 9 |
| RMS | 0.3 |
| Number of Stations | 8 |
| Error in Latitude | >6 km |
| Error in Longitude | 7.3 km |
| Error in Depth | 6.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 110869 | IIEES | SNGE | N | 254.2 | 0.5 | 2016-11-20 22:51:37 | 2016-11-21 09:22:00 | n |
| 110870 | IIEES | ILBA | E | 553.1 | 0.5 | 2016-11-20 22:51:39 | 2016-11-21 09:22:00 | n |
| 110871 | IIEES | ILBA | N | 396.9 | 0.29 | 2016-11-20 22:51:40 | 2016-11-21 09:22:00 | n |
| 110872 | IIEES | ASAO | N | 14 | 0.59 | 2016-11-20 22:52:59 | 2016-11-21 09:22:00 | n |
| 110873 | IIEES | KHMZ | N | 24.5 | 0.8 | 2016-11-20 22:52:55 | 2016-11-21 09:22:00 | n |
| 110874 | IIEES | KHMZ | E | 18 | 0.68 | 2016-11-20 22:52:58 | 2016-11-21 09:22:00 | n |
| 110875 | IIEES | GHVR | E | 9 | 0.25 | 2016-11-20 22:53:28 | 2016-11-21 09:22:00 | n |
| 110876 | IIEES | GHVR | N | 12.3 | 0.76 | 2016-11-20 22:53:28 | 2016-11-21 09:22:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SNGE | Z | Pg | E | 2016-11-20 22:51:14 | -0.41 | y | 145 | 84 | |||
| IIEES | SNGE | N | Sg | E | 2016-11-20 22:51:32 | 0.06 | y | 145 | 84 | |||
| IIEES | ILBA | Z | Pg | E | 2016-11-20 22:51:15 | -0.13 | y | 155 | 165 | |||
| IIEES | ZNJK | Z | Pn | E | 2016-11-20 22:51:38 | -0.05 | y | 324 | 54 | |||
| IIEES | ASAO | Z | Pn | E | 2016-11-20 22:51:47 | 0.51 | y | 393 | 96 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-11-20 22:51:49 | 0.38 | y | 410 | 108 | |||
| IIEES | GHVR | Z | Pn | E | 2016-11-20 22:52:00 | -0.21 | y | 505 | 95 | |||
| IIEES | DAMV | Z | Pn | E | 2016-11-20 22:52:08 | 0 | y | 569 | 81 | |||
| IIEES | NASN | Z | Pn | E | 2016-11-20 22:52:24 | -0.08 | y | 695 | 108 | |||
