Magnitude |
:3.8 |
| Date & Time (UTC) | 2016-11-01 03:28:08.3 |
| Date & Time (Local) | 1395/8/11 06:58:08.3 |

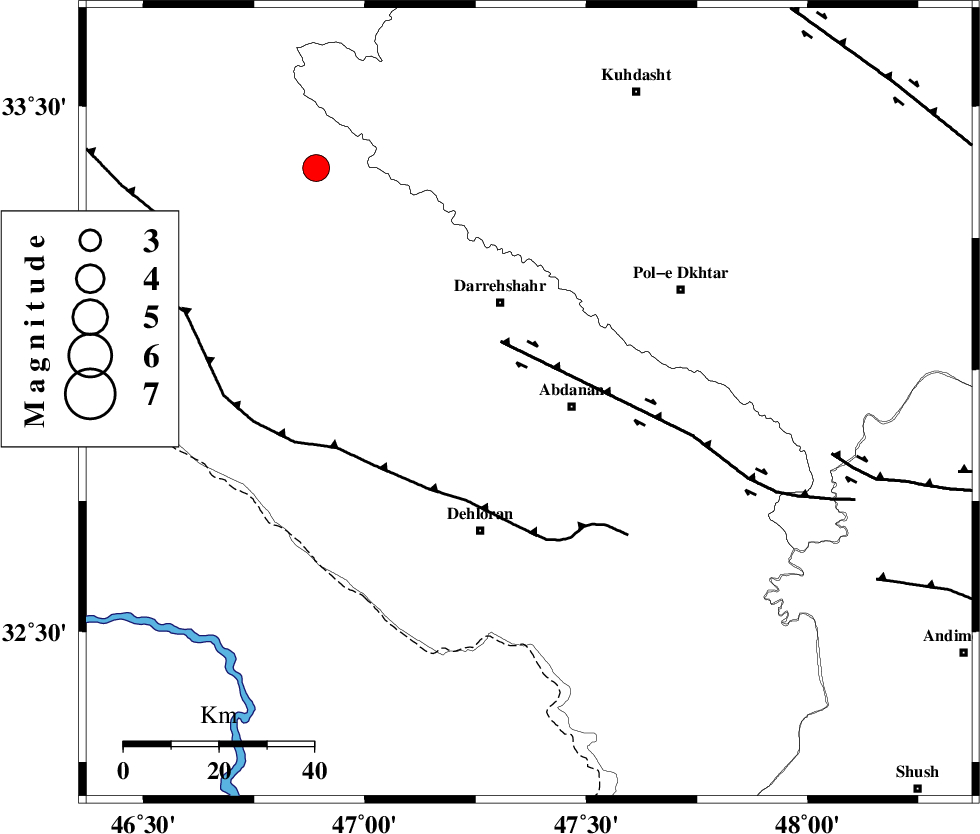

| Location | Lat:32.936 Lon: 47.371 |
| Region | Ilam Province, 9 km of Abdanan |
Nearest Cities |
|
| 9 km North of Abdanan, Ilam Province | |
| 19 km North West of Sarabbagh, Ilam Province | |
| 22 km South of Darreh Shahr, Ilam Province | |
| 26 km South of Dashtabad-e olia, Ilam Province | |
| 29 km North East of Dehloran, Ilam Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 14 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 24 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 65 km | |
| Number of Phases | 13 |
| RMS | 0.2 |
| Number of Stations | 11 |
| Error in Latitude | >3.9 km |
| Error in Longitude | 6.3 km |
| Error in Depth | 9.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 110429 | IIEES | KHMZ | E | 361.3 | 0.46 | 2016-11-01 03:29:25 | 2016-11-01 04:59:00 | n |
| 110430 | IIEES | ASAO | N | 321.1 | 0.83 | 2016-11-01 03:29:47 | 2016-11-01 04:59:00 | n |
| 110431 | IIEES | ASAO | E | 194.5 | 0.73 | 2016-11-01 03:29:48 | 2016-11-01 04:59:00 | n |
| 110432 | IIEES | GHVR | N | 198.2 | 0.8 | 2016-11-01 03:30:05 | 2016-11-01 04:59:00 | n |
| 110433 | IIEES | GHVR | E | 199.9 | 0.64 | 2016-11-01 03:30:09 | 2016-11-01 04:59:00 | n |
| 110434 | IIEES | NASN | N | 36.7 | 0.64 | 2016-11-01 03:30:40 | 2016-11-01 04:59:00 | n |
| 110435 | IIEES | NASN | E | 52.2 | 0.55 | 2016-11-01 03:30:44 | 2016-11-01 04:59:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SNGE | Z | Pn | E | 2016-11-01 03:28:45 | 0.05 | y | 239 | 359 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-11-01 03:28:48 | 0.07 | y | 257 | 69 | |||
| IIEES | ASAO | Z | Pn | E | 2016-11-01 03:28:54 | 0.2 | y | 304 | 53 | |||
| IIEES | GHVR | Z | Pn | E | 2016-11-01 03:29:05 | 0.3 | y | 398 | 63 | |||
| IIEES | ZNJK | Z | Pn | E | 2016-11-01 03:29:09 | 0.01 | y | 431 | 16 | |||
| IIEES | ZNJK | E | Sg | E | 2016-11-01 03:30:08 | -0.11 | y | 431 | 16 | |||
| IIEES | CHTH | Z | Pn | E | 2016-11-01 03:29:15 | -0.2 | y | 477 | 45 | |||
| IIEES | NASN | Z | Pn | E | 2016-11-01 03:29:19 | -0.36 | y | 509 | 90 | |||
| IIEES | DAMV | Z | Pn | E | 2016-11-01 03:29:20 | -0.29 | y | 518 | 54 | |||
| IIEES | AHRM | Z | Pn | E | 2016-11-01 03:29:28 | -0.1 | y | 587 | 139 | |||
| IIEES | YZKH | Z | Pn | E | 2016-11-01 03:29:39 | -1.43 | n | 4 | 680 | 93 | ||
| IIEES | SHRO | Z | Pn | E | 2016-11-01 03:30:03 | 0.37 | y | 864 | 64 | |||
| IIEES | TABS | Z | Pn | E | 2016-11-01 03:30:09 | 0.21 | y | 911 | 82 | |||
