Magnitude |
:2.9 |
| Date & Time (UTC) | 2016-10-03 02:28:42.5 |
| Date & Time (Local) | 1395/7/12 05:58:42.5 |

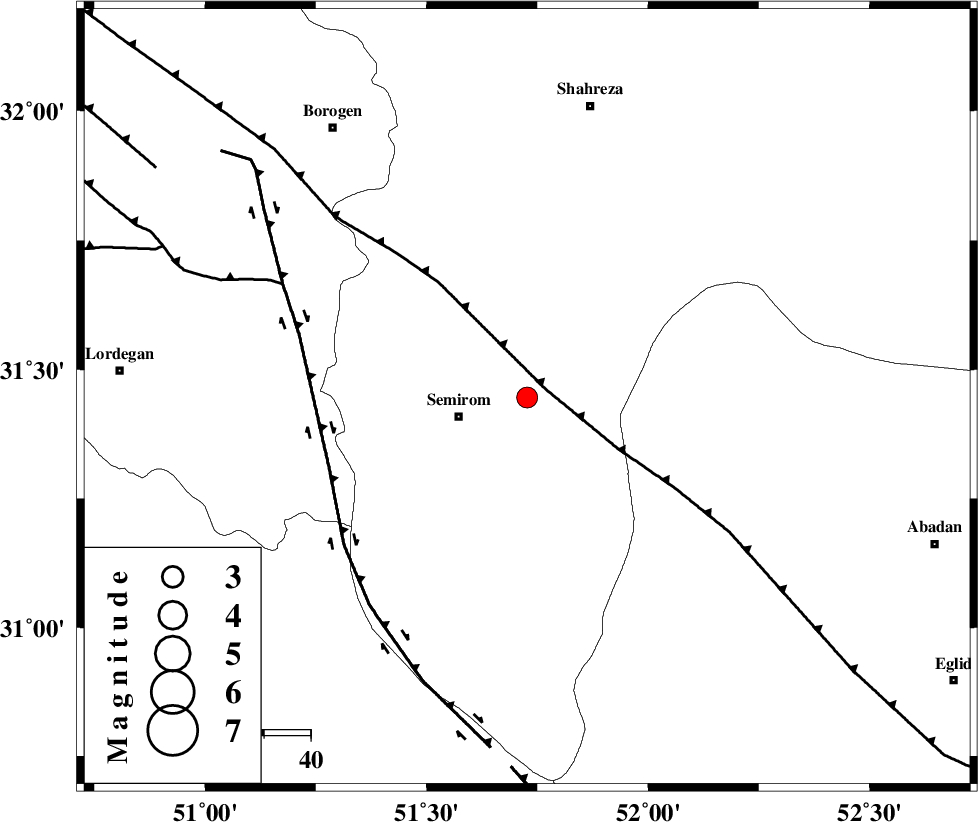

| Location | Lat:31.446 Lon: 51.727 |
| Region | Esfahan Province, 15 km -East of Semirom |
Nearest Cities |
|
| 15 km North East of Semirom, Esfahan Province | |
| 28 km North of Hanae, Esfahan Province | |
| 30 km South West of Esfarjan, Esfahan Province | |
| 31 km South of Kahruyeh, Esfahan Province | |
| 38 km West of Ezad khvast, Fars Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 4 km | |
| DENA_F (Length: 137 km) , Distance to epicenter: 45 km | |
| DOPOLAN_F (Length: 107 km) , Distance to epicenter: 58 km | |
| Number of Phases | 15 |
| RMS | 0.2 |
| Number of Stations | 14 |
| Error in Latitude | >1.9 km |
| Error in Longitude | 2.6 km |
| Error in Depth | 6.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 109612 | IIEES | NASN | E | 63.7 | 0.46 | 2016-10-03 02:29:47 | 2016-10-03 05:47:00 | n |
| 109613 | IIEES | AHRM | N | 49.8 | 0.36 | 2016-10-03 02:30:19 | 2016-10-03 05:47:00 | n |
| 109614 | IIEES | YZKH | N | 34.3 | 0.45 | 2016-10-03 02:30:03 | 2016-10-03 05:47:00 | n |
| 109615 | IIEES | YZKH | E | 39.4 | 0.58 | 2016-10-03 02:30:10 | 2016-10-03 05:47:00 | n |
| 109616 | IIEES | KHMZ | N | 30.4 | 0.54 | 2016-10-03 02:30:15 | 2016-10-03 05:47:00 | n |
| 109617 | IIEES | KHMZ | E | 30.9 | 0.64 | 2016-10-03 02:30:17 | 2016-10-03 05:47:00 | n |
| 109618 | IIEES | GHVR | E | 26.2 | 0.59 | 2016-10-03 02:30:32 | 2016-10-03 05:47:00 | n |
| 109619 | IIEES | GHVR | N | 16.7 | 0.59 | 2016-10-03 02:30:32 | 2016-10-03 05:47:00 | n |
| 109620 | IIEES | ASAO | E | 17.8 | 0.57 | 2016-10-03 02:30:39 | 2016-10-03 05:47:00 | n |
| 109621 | IIEES | ASAO | N | 30.6 | 0.57 | 2016-10-03 02:30:40 | 2016-10-03 05:47:00 | n |
| 109622 | IIEES | DAMV | N | 13.1 | 0.75 | 2016-10-03 02:31:02 | 2016-10-03 05:47:00 | n |
| 109623 | IIEES | DAMV | E | 9.4 | 0.45 | 2016-10-03 02:31:05 | 2016-10-03 05:47:00 | n |
| 109624 | IIEES | KRBR | N | 7.8 | 0.46 | 2016-10-03 02:31:24 | 2016-10-03 05:47:00 | n |
| 109625 | IIEES | KRBR | E | 7.6 | 0.35 | 2016-10-03 02:31:33 | 2016-10-03 05:47:00 | n |
| 109626 | IIEES | TABS | N | 4.9 | 0.6 | 2016-10-03 02:31:48 | 2016-10-03 05:47:00 | n |
| 109627 | IIEES | SNGE | N | 5.5 | 0.67 | 2016-10-03 02:31:36 | 2016-10-03 05:47:00 | n |
| 109628 | IIEES | SNGE | E | 4 | 0.45 | 2016-10-03 02:31:37 | 2016-10-03 05:47:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | NASN | Z | Pg | E | 2016-10-03 02:29:09 | -3.03 | n | 4 | 181 | 34 | ||
| IIEES | AHRM | Z | Pn | E | 2016-10-03 02:29:25 | 0.08 | y | 289 | 188 | |||
| IIEES | YZKH | Z | Pn | E | 2016-10-03 02:29:26 | 0.01 | y | 290 | 68 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-10-03 02:29:27 | -0.21 | y | 304 | 327 | |||
| IIEES | KHMZ | N | Sg | E | 2016-10-03 02:30:08 | 0.08 | y | 304 | 327 | |||
| IIEES | GHVR | Z | Pn | E | 2016-10-03 02:29:32 | 0.1 | y | 340 | 353 | |||
| IIEES | ASAO | Z | Pn | E | 2016-10-03 02:29:36 | -0.17 | y | 379 | 336 | |||
| IIEES | DAMV | Z | Pn | E | 2016-10-03 02:29:47 | -0.01 | y | 465 | 3 | |||
| IIEES | CHTH | Z | Pn | E | 2016-10-03 02:29:52 | 0.26 | y | 498 | 354 | |||
| IIEES | KRBR | Z | Pn | E | 2016-10-03 02:29:53 | -0.15 | y | 509 | 107 | |||
| IIEES | TABS | Z | Pn | E | 2016-10-03 02:29:59 | 0.06 | y | 562 | 63 | |||
| IIEES | SNGE | Z | Pn | E | 2016-10-03 02:29:58 | -3.21 | n | 4 | 575 | 316 | ||
| IIEES | SHRO | Z | Pn | E | 2016-10-03 02:30:09 | -0.38 | y | 643 | 37 | |||
| IIEES | BSRN | Z | Pn | E | 2016-10-03 02:30:17 | 0.21 | y | 704 | 83 | |||
| IIEES | MRVT | Z | Pn | E | 2016-10-03 02:30:29 | 0.21 | y | 797 | 29 | |||
