Magnitude |
:4 |
| Date & Time (UTC) | 2016-03-06 23:13:39.0 |
| Date & Time (Local) | 1394/12/17 02:43:39.0 |

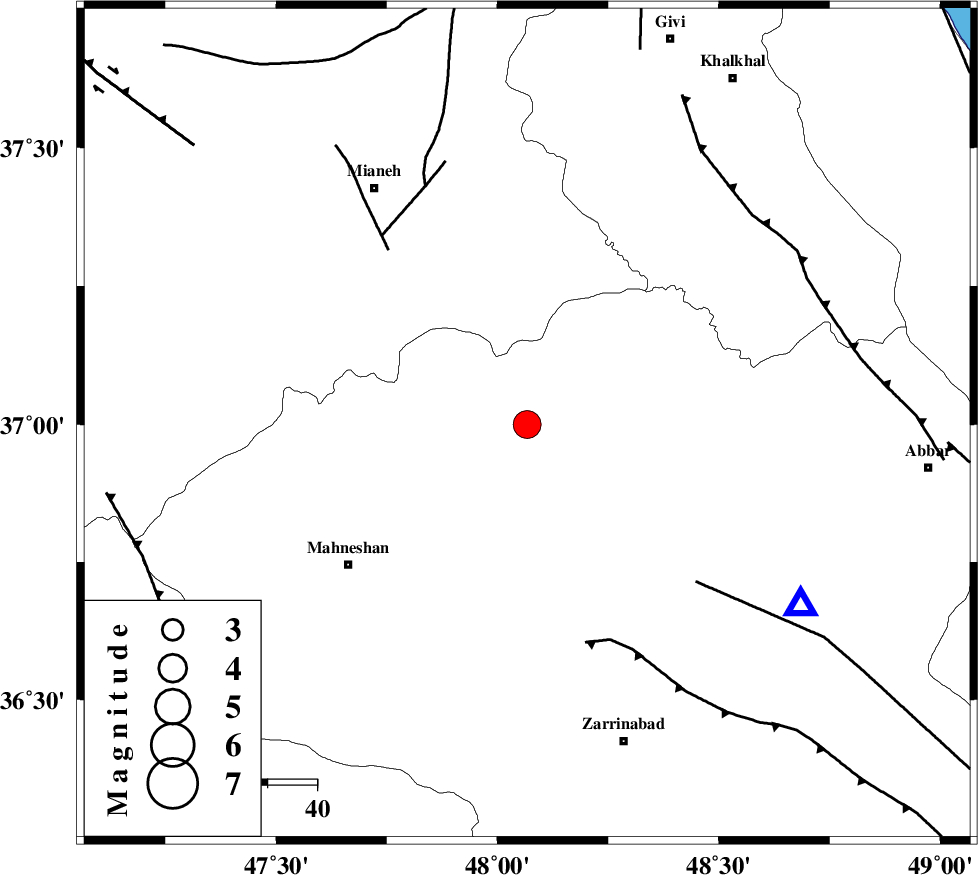

| Location | Lat:37 Lon: 48.067 |
| Region | Zanjan Province, 46 km North-East of Mahneshan |
Nearest Cities |
|
| 20 km North West of Nikpei, Zanjan Province | |
| 23 km South West of Qebleh belaghi, Zanjan Province | |
| 23 km North of Andabad-e olia, Zanjan Province | |
| 27 km East of Qareh buteh, Zanjan Province | |
| 28 km South of Agkand, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 45 km | |
| SOLTANIYEH_F (Length: 119 km) , Distance to epicenter: 46 km | |
| ZANJAN_F (Length: 137 km) , Distance to epicenter: 46 km | |
| Number of Phases | 21 |
| RMS | 0.7 |
| Number of Stations | 17 |
| Error in Latitude | >3.5 km |
| Error in Longitude | 6.1 km |
| Error in Depth | 9.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 104819 | IIEES | ZNJK | N | 4085.6 | 0.13 | 2016-03-06 23:13:59 | 2016-03-07 05:31:00 | n |
| 104820 | IIEES | GRMI | N | 1393.9 | 0.3 | 2016-03-06 23:14:41 | 2016-03-07 05:31:00 | n |
| 104821 | IIEES | GRMI | E | 920.1 | 0.49 | 2016-03-06 23:14:42 | 2016-03-07 05:31:00 | n |
| 104822 | IIEES | THKV | E | 895 | 0.51 | 2016-03-06 23:15:00 | 2016-03-07 05:31:00 | n |
| 104823 | IIEES | THKV | N | 775.2 | 0.37 | 2016-03-06 23:15:00 | 2016-03-07 05:31:00 | n |
| 104824 | IIEES | DAMV | N | 192.7 | 0.43 | 2016-03-06 23:15:28 | 2016-03-07 05:31:00 | n |
| 104825 | IIEES | DAMV | E | 276.9 | 0.34 | 2016-03-06 23:15:36 | 2016-03-07 05:31:00 | n |
| 104826 | IIEES | GHVR | E | 265.9 | 0.71 | 2016-03-06 23:15:41 | 2016-03-07 05:31:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ZNJK | Z | Pg | E | 2016-03-06 23:13:50 | -0.5 | y | 66.1 | 123 | |||
| IIEES | GRMI | Z | Pg | E | 2016-03-06 23:14:11 | -0.43 | y | 202 | 356 | |||
| IIEES | GRMI | N | Sg | E | 2016-03-06 23:14:36 | 0.26 | y | 202 | 356 | |||
| IIEES | SNGE | Z | Pn | E | 2016-03-06 23:14:13 | -0.71 | y | 221 | 197 | |||
| IIEES | SNGE | N | Sg | E | 2016-03-06 23:14:41 | -0.19 | y | 221 | 197 | |||
| IIEES | THKV | Z | Pn | E | 2016-03-06 23:14:20 | -1.36 | y | 279 | 115 | |||
| IIEES | CHTH | Z | Pn | E | 2016-03-06 23:14:24 | -0.01 | y | 300 | 113 | |||
| IIEES | ASAO | Z | Pn | E | 2016-03-06 23:14:28 | 1.07 | y | 325 | 146 | |||
| IIEES | DAMV | Z | Pn | E | 2016-03-06 23:14:34 | 0.63 | y | 382 | 112 | |||
| IIEES | DAMV | N | Sg | E | 2016-03-06 23:15:25 | -0.13 | y | 382 | 112 | |||
| IIEES | MAKU | Z | Pn | E | 2016-03-06 23:14:36 | 0.37 | y | 395 | 312 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-03-06 23:14:39 | 2.8 | n | 4 | 401 | 154 | ||
| IIEES | GHVR | Z | Pn | E | 2016-03-06 23:14:37 | 0.69 | y | 401 | 133 | |||
| IIEES | NASN | Z | Pn | E | 2016-03-06 23:15:07 | 1.6 | y | 636 | 136 | |||
| IIEES | MRVT | Z | Pn | E | 2016-03-06 23:15:14 | -1.36 | y | 715 | 82 | |||
| IIEES | SHRO | Z | Pn | E | 2016-03-06 23:15:16 | 0.09 | y | 720 | 96 | |||
| IIEES | YZKH | Z | Pn | E | 2016-03-06 23:15:25 | 0.56 | y | 786 | 129 | |||
| IIEES | BJRD | Z | Pn | E | 2016-03-06 23:15:30 | 0.25 | y | 831 | 82 | |||
| IIEES | TABS | Z | Pn | E | 2016-03-06 23:15:39 | 0.24 | y | 903 | 112 | |||
| IIEES | BSRN | Z | Pn | E | 2016-03-06 23:16:10 | 0.21 | y | 1158 | 116 | |||
| IIEES | SHRT | Z | Pn | E | 2016-03-06 23:16:12 | 0.43 | y | 1171 | 105 | |||
