Magnitude |
:3.1 |
| Date & Time (UTC) | 2010-12-22 04:19:25.9 |
| Date & Time (Local) | 1389/10/1 07:49:25.9 |
| Location | Lat:28.21 Lon: 59.29 |
| Region | Sistan va Baloochestan Province, 135 km South-East of Bam |
Nearest Cities |
|
| 59 km South East of Hoseynabad, Kerman Province | |
| 70 km South East of Mohammadabad-e gonbaki, Kerman Province | |
| 79 km North East of Borj-e abbasabad, Kerman Province | |
| 83 km South East of Void, Kerman Province | |
| 85 km North West of Kalemursi, Sistan va Baloochestan Province | |
| Depth | 36 km |
| Agency | |

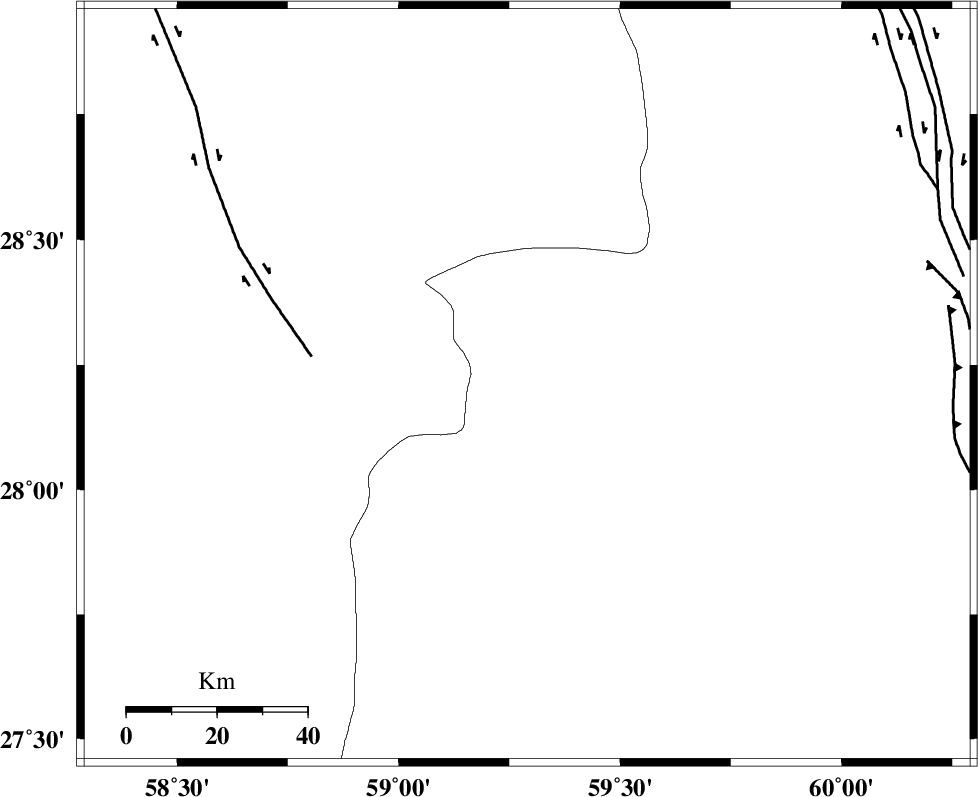

Faults within 150 km: |
|
| BAM_F (Length: 118 km) , Distance to epicenter: 48 km | |
| KANURAK_F (Length: 135 km) , Distance to epicenter: 89 km | |
| DAMAN_F (Length: 167 km) , Distance to epicenter: 93 km | |
| Number of Phases | 6 |
| RMS | 0.4 |
| Number of Stations | 4 |
| Error in Latitude | >6.1 km |
| Error in Longitude | 4.6 km |
| Error in Depth | 9.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 76110 | IIEES | KRBR | N | 70.1 | 0.48 | 2010-12-22 04:20:58 | 2010-12-22 04:38:00 | n |
| 76111 | IIEES | BNDS | N | 55.1 | 0.51 | 2010-12-22 04:21:00 | 2010-12-22 04:38:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ZHSF | Z | Pg | E | 2010-12-22 04:20:00 | -0.2 | y | 212 | 43 | |||
| IIEES | ZHSF | N | Sg | E | 2010-12-22 04:20:25 | 0.2 | y | 212 | 43 | |||
| IIEES | CHBR | Z | Pn | E | 2010-12-22 04:20:10 | -0.2 | y | 314 | 157 | |||
| IIEES | KRBR | Z | Pn | E | 2010-12-22 04:20:10 | -0.5 | y | 314 | 309 | |||
| IIEES | BNDS | Z | Pn | E | 2010-12-22 04:20:12 | 0.7 | y | 320 | 254 | |||
| IIEES | BNDS | E | Sg | E | 2010-12-22 04:20:53 | -0.1 | y | 320 | 254 | |||
