Magnitude |
:2.6 |
| Date & Time (UTC) | 2006-11-12 09:51:40.4 |
| Date & Time (Local) | 1385/8/21 13:21:40.4 |
| Location | Lat:35.14 Lon: 49.83 |
| Region | 50 km North-West of Saveh, Markazi Province |
Nearest Cities |
|
| 3 km North of Gharqabad, Markazi Province | |
| 9 km North of Nobaran, Markazi Province | |
| 21 km North West of Qeytaniyeh, Markazi Province | |
| 24 km South West of Razegian, Markazi Province | |
| 26 km East of Yatan, Markazi Province | |
| Depth | 21 km |
| Agency | |

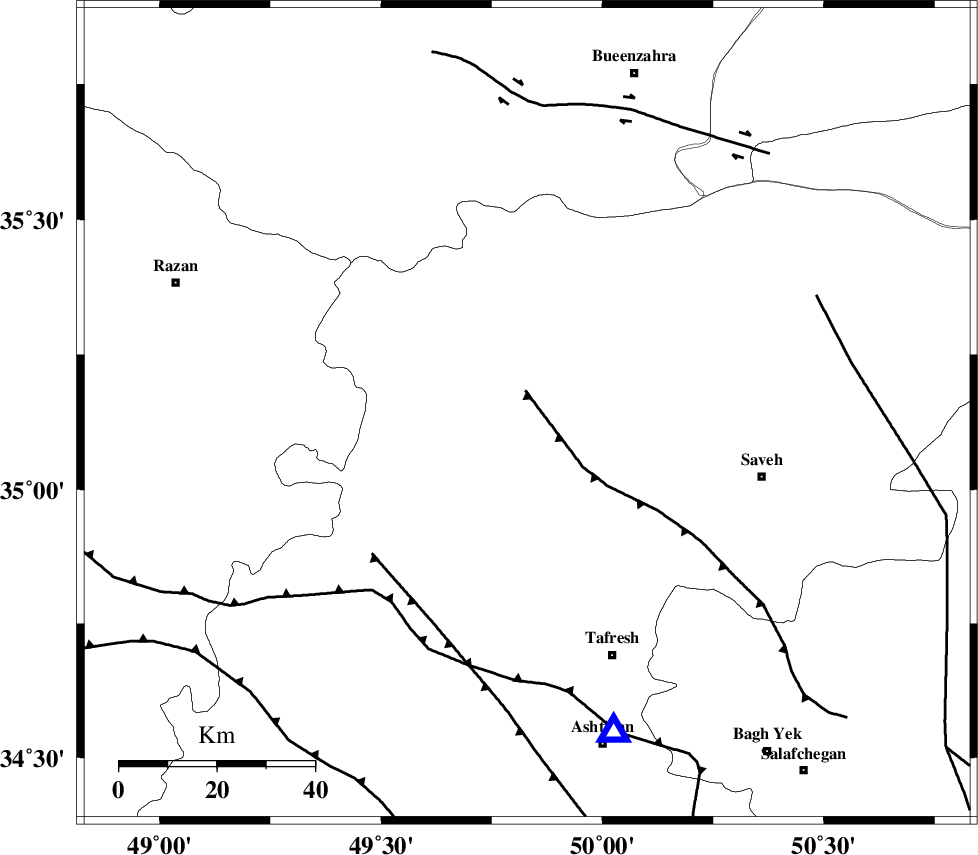

Faults within 150 km: |
|
| INDES_F (Length: 98 km) , Distance to epicenter: 5 km | |
| KUSHK_E_NOSRAT_F (Length: 230 km) , Distance to epicenter: 16 km | |
| S_PARANDAK_F (Length: 116 km) , Distance to epicenter: 31 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | >1.6 km |
| Error in Longitude | 2.6 km |
| Error in Depth | 5.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 36643 | IIEES | ASAO | E | 190.1 | 0.14 | 2006-11-12 09:52:02 | 2007-01-07 07:24:00 | n |
| 36644 | IIEES | THKV | N | 107 | 0.34 | 2006-11-12 09:52:23 | 2007-01-07 07:24:00 | n |
| 36645 | IIEES | THKV | E | 128.9 | 0.45 | 2006-11-12 09:52:25 | 2007-01-07 07:24:00 | n |
| 36646 | IIEES | CHTH | N | 142.2 | 0.33 | 2006-11-12 09:52:22 | 2007-01-07 07:24:00 | n |
| 36647 | IIEES | DAMV | E | 113.3 | 0.4 | 2006-11-12 09:52:39 | 2007-01-07 07:24:00 | n |
| 36648 | IIEES | SNGE | N | 42.5 | 0.5 | 2006-11-12 09:52:46 | 2007-01-07 07:24:00 | n |
| 36649 | IIEES | NASN | E | 8.3 | 0.39 | 2006-11-12 09:53:27 | 2007-01-07 07:24:00 | n |
| 36650 | IIEES | NASN | N | 7.7 | 0.47 | 2006-11-12 09:53:33 | 2007-01-07 07:24:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ASAO | Z | Pg | E | 2006-11-12 09:51:52 | 0 | y | 68.4 | 165 | |||
| IIEES | ASAO | E | Sg | E | 2006-11-12 09:52:01 | 0 | y | 68.4 | 165 | |||
| IIEES | THKV | Z | Pg | E | 2006-11-12 09:52:01 | 0.2 | y | 128 | 48 | |||
| IIEES | CHTH | Z | Pg | E | 2006-11-12 09:52:04 | -0.1 | y | 145 | 54 | |||
| IIEES | DAMV | Z | Pg | E | 2006-11-12 09:52:12 | -0.1 | y | 202 | 74 | |||
| IIEES | SNGE | Z | Pg | E | 2006-11-12 09:52:16 | 0 | y | 226 | 269 | |||
| IIEES | NASN | Z | Pn | E | 2006-11-12 09:52:34 | 0 | y | 379 | 132 | |||
