Magnitude |
:4.2 |
| Date & Time (UTC) | 2021-09-28 08:58:24.1 |
| Date & Time (Local) | 1400/7/6 12:28:24.1 |

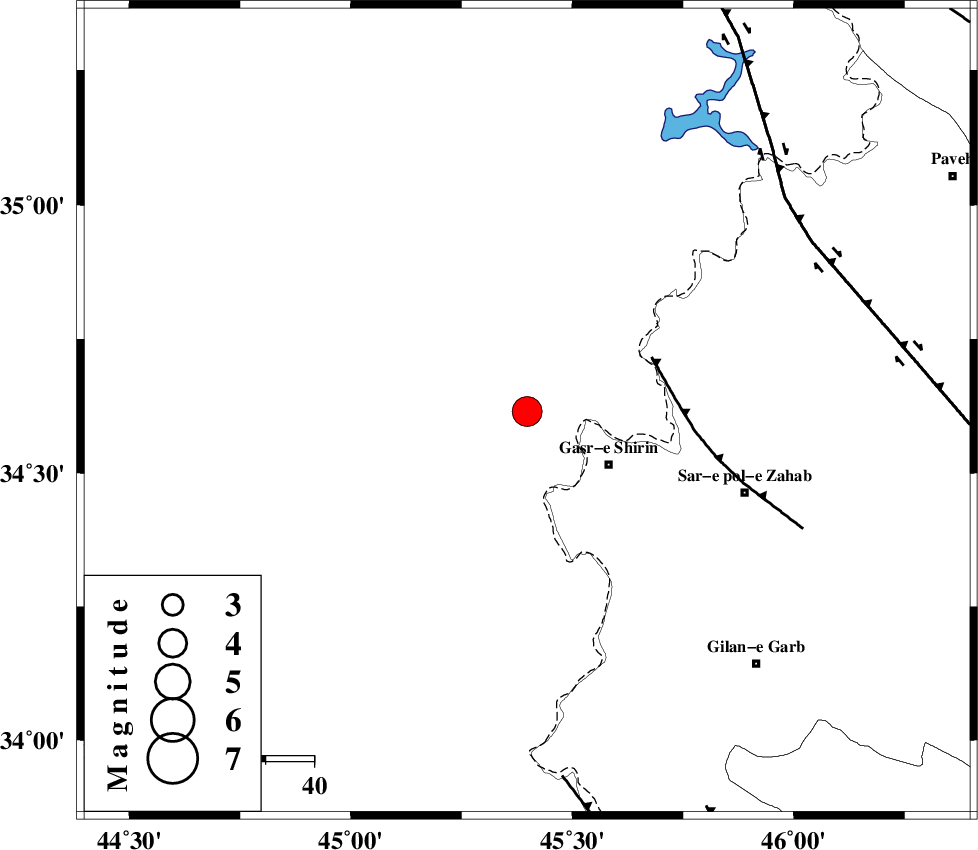

| Location | Lat:34.615 Lon: 45.398 |
| Region | Iraq, 20 km -West of Qasr-E-Shirin |
Nearest Cities |
|
| 20 km North West of Qasr-E-Shirin, Kermanshah Province | |
| 25 km North of Khosravi, Kermanshah Province | |
| 26 km North West of Aqabarar, Kermanshah Province | |
| 26 km North West of Seyyed sohrab, Kermanshah Province | |
| 33 km South West of Tappeh rash, Kermanshah Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 28 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 68 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 76 km | |
| Number of Phases | 12 |
| RMS | 0.5 |
| Number of Stations | 12 |
| Error in Latitude | >2.3 km |
| Error in Longitude | 2.3 km |
| Error in Depth | 5.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 165369 | IIEES SC | ZNJK | Z | 0.2 | 1 | 2021-09-28 08:59:18 | 2021-09-28 09:45:00 | n |
| 165370 | IIEES SC | GTMR | Z | 0.7 | 1 | 2021-09-28 08:59:24 | 2021-09-28 09:45:00 | n |
| 165371 | IIEES SC | KHMZ | Z | 0.5 | 1 | 2021-09-28 08:59:25 | 2021-09-28 09:45:00 | n |
| 165372 | IIEES SC | MRD | Z | 0.4 | 1 | 2021-09-28 08:59:29 | 2021-09-28 09:45:00 | n |
| 165373 | IIEES SC | GRMI | Z | 0.1 | 1 | 2021-09-28 08:59:36 | 2021-09-28 09:45:00 | n |
| 165374 | IIEES SC | GHVR | Z | 0.5 | 1 | 2021-09-28 08:59:39 | 2021-09-28 09:45:00 | n |
| 165375 | IIEES SC | KLNJ | Z | 0.2 | 1 | 2021-09-28 08:59:59 | 2021-09-28 09:45:00 | n |
| 165376 | IIEES SC | NASN | Z | 0.1 | 1 | 2021-09-28 09:00:00 | 2021-09-28 09:45:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | ILBA | Z | EPg | E | 2021-09-28 08:58:47 | 0.6 | y | 0 | 133 | 146 | ||
| IIEES SC | SRSL | Z | EPg | E | 2021-09-28 08:58:57 | 4 | n | 4 | 177 | 1 | ||
| IIEES SC | SNGE | Z | EPg | E | 2021-09-28 08:58:55 | 0.7 | y | 0 | 186 | 73 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2021-09-28 08:59:18 | -0.4 | y | 0 | 375 | 53 | ||
| IIEES SC | GTMR | Z | EPn | E | 2021-09-28 08:59:24 | -0.2 | y | 0 | 419 | 125 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2021-09-28 08:59:25 | -0.6 | y | 0 | 432 | 103 | ||
| IIEES SC | MRD | Z | EPn | E | 2021-09-28 08:59:29 | -0.1 | y | 0 | 456 | 3 | ||
| IIEES SC | GZV | Z | EPn | E | 2021-09-28 08:59:44 | 12.7 | n | 4 | 480 | 66 | ||
| IIEES SC | GRMI | Z | EPn | E | 2021-09-28 08:59:36 | 0.2 | y | 0 | 516 | 26 | ||
| IIEES SC | GHVR | Z | EPn | E | 2021-09-28 08:59:39 | 0.2 | y | 0 | 537 | 92 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2021-09-28 08:59:59 | -0.5 | y | 0 | 705 | 125 | ||
| IIEES SC | NASN | Z | EPn | E | 2021-09-28 09:00:00 | -0.7 | y | 0 | 716 | 106 | ||
