Magnitude |
:3.2 |
| Date & Time (UTC) | 2020-04-16 22:06:08.5 |
| Date & Time (Local) | 1399/1/29 02:36:08.5 |

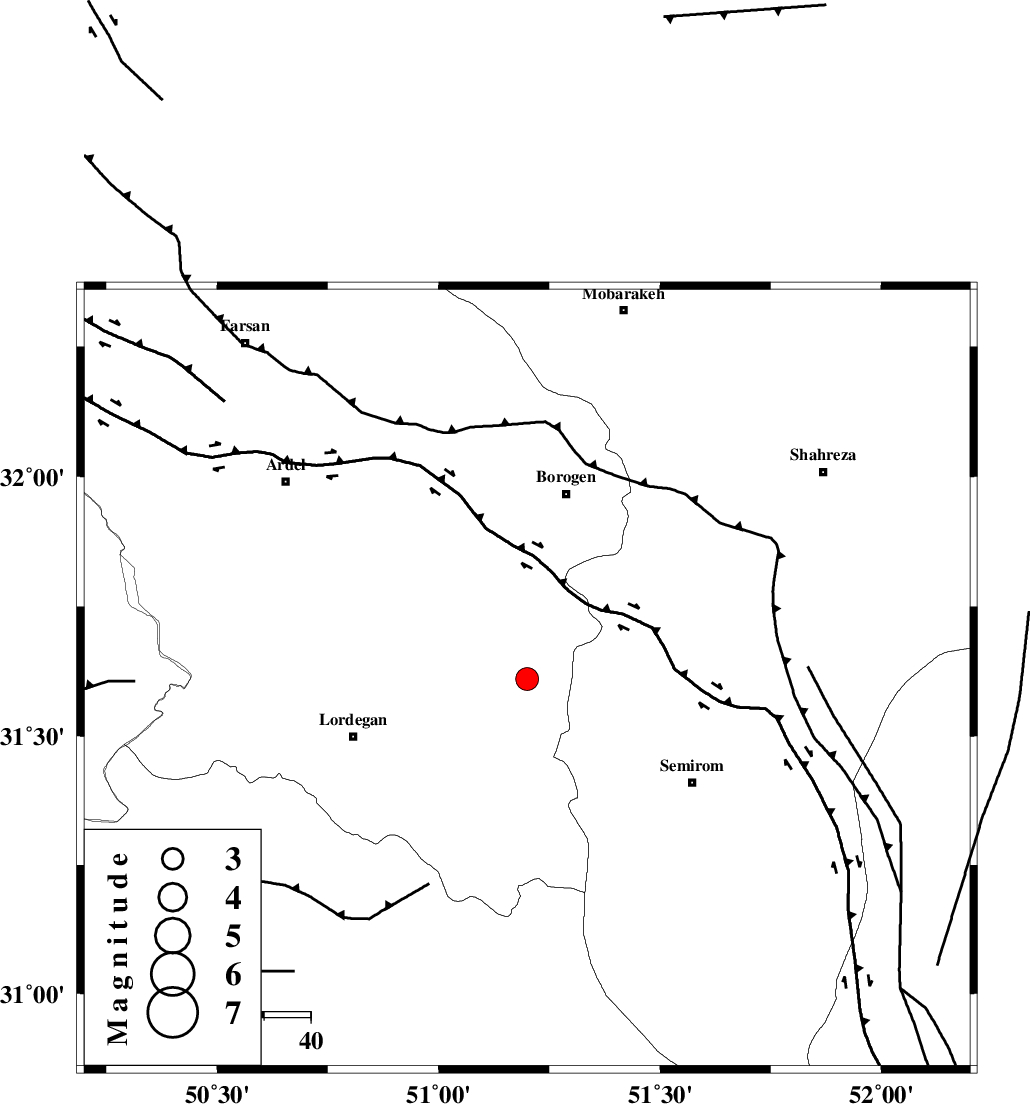

| Location | Lat:31.61 Lon: 51.2 |
| Region | Chaharmahal Bakhtiari Province, 41 km South of Borujen |
Nearest Cities |
|
| 15 km North East of Aluni, Chaharmahal Bakhtiari Province | |
| 16 km North West of Vanak, Esfahan Province | |
| 29 km South of Gandoman, Chaharmahal Bakhtiari Province | |
| 38 km North of Malkhalifeh, Chaharmahal Bakhtiari Province | |
| 38 km South East of Baladaji, Chaharmahal Bakhtiari Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| DENA_F (Length: 137 km) , Distance to epicenter: 5 km | |
| DOPOLAN_F (Length: 107 km) , Distance to epicenter: 7 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 22 km | |
| Number of Phases | 14 |
| RMS | 0.8 |
| Number of Stations | 12 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 153026 | IIEES SC | KLNJ | Z | 1200 | 1 | 2020-04-16 22:06:43 | 2020-04-19 11:47:00 | n |
| 153027 | IIEES SC | AMIS | Z | 340 | 1 | 2020-04-16 22:07:07 | 2020-04-19 11:47:00 | n |
| 153028 | IIEES SC | NASN | Z | 110 | 1 | 2020-04-16 22:07:12 | 2020-04-19 11:47:00 | n |
| 153029 | IIEES SC | GTMR | Z | 250 | 1 | 2020-04-16 22:07:19 | 2020-04-19 11:47:00 | n |
| 153030 | IIEES SC | KHMZ | Z | 96 | 1 | 2020-04-16 22:07:31 | 2020-04-19 11:47:00 | n |
| 153031 | IIEES SC | AHRM | Z | 16 | 1 | 2020-04-16 22:07:51 | 2020-04-19 11:47:00 | n |
| 153032 | IIEES SC | GHVR | Z | 260 | 1 | 2020-04-16 22:08:33 | 2020-04-19 11:47:00 | n |
| 153033 | IIEES SC | YZKH | Z | 47 | 1 | 2020-04-16 22:07:50 | 2020-04-19 11:47:00 | n |
| 153034 | IIEES SC | DAMV | Z | 4.3 | 1 | 2020-04-16 22:07:45 | 2020-04-19 11:47:00 | n |
| 153035 | IIEES SC | CHTH | Z | 9.4 | 1 | 2020-04-16 22:08:01 | 2020-04-19 11:47:00 | n |
| 153036 | IIEES SC | QABG | Z | 5 | 1 | 2020-04-16 22:08:33 | 2020-04-19 11:47:00 | n |
| 153037 | IIEES SC | TABS | Z | 2.3 | 1 | 2020-04-16 22:09:08 | 2020-04-19 11:47:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | KLNJ | Z | IP | I | 2020-04-16 22:06:22 | 0.1 | y | 77 | 150 | |||
| IIEES SC | AMIS | Z | IP | I | 2020-04-16 22:06:38 | 0.3 | y | 177 | 272 | |||
| IIEES SC | NASN | Z | IP | I | 2020-04-16 22:06:40 | -1.2 | y | 200 | 49 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-04-16 22:06:43 | -0.5 | y | 222 | 296 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-04-16 22:06:49 | 0.2 | y | 266 | 334 | |||
| IIEES SC | AHRM | Z | IP | I | 2020-04-16 22:06:54 | -0.3 | y | 300 | 178 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-04-16 22:06:57 | 1.4 | y | 322 | 1 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-04-16 22:06:59 | 1.7 | y | 333 | 75 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-04-16 22:07:11 | -1.6 | y | 455 | 9 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-04-16 22:07:17 | 1.6 | y | 478 | 359 | |||
| IIEES SC | QABG | Z | IP | I | 2020-04-16 22:07:16 | -0.3 | y | 478 | 342 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-04-16 22:07:28 | 6.4 | n | 4 | 522 | 317 | ||
| IIEES SC | TABS | Z | IP | I | 2020-04-16 22:07:31 | 0 | y | 600 | 68 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-04-16 22:07:29 | -9.2 | n | 4 | 656 | 42 | ||
