Magnitude |
:2.7 |
| Date & Time (UTC) | 2017-04-07 17:51:55.9 |
| Date & Time (Local) | 1396/1/18 22:21:55.9 |
| Location | Lat:32.472 Lon: 47.838 |
| Region | Ilam Province, 48 km -West of Andimeshk |
Nearest Cities |
|
| 45 km South West of Hoseinieh, Khoozestan Province | |
| 46 km East of Musian, Ilam Province | |
| 48 km North West of Andimeshk, Khoozestan Province | |
| 49 km South West of Bidruyeh, Khoozestan Province | |
| 49 km North West of Shush, Khoozestan Province | |
| Depth | 14 km |
| Agency | |

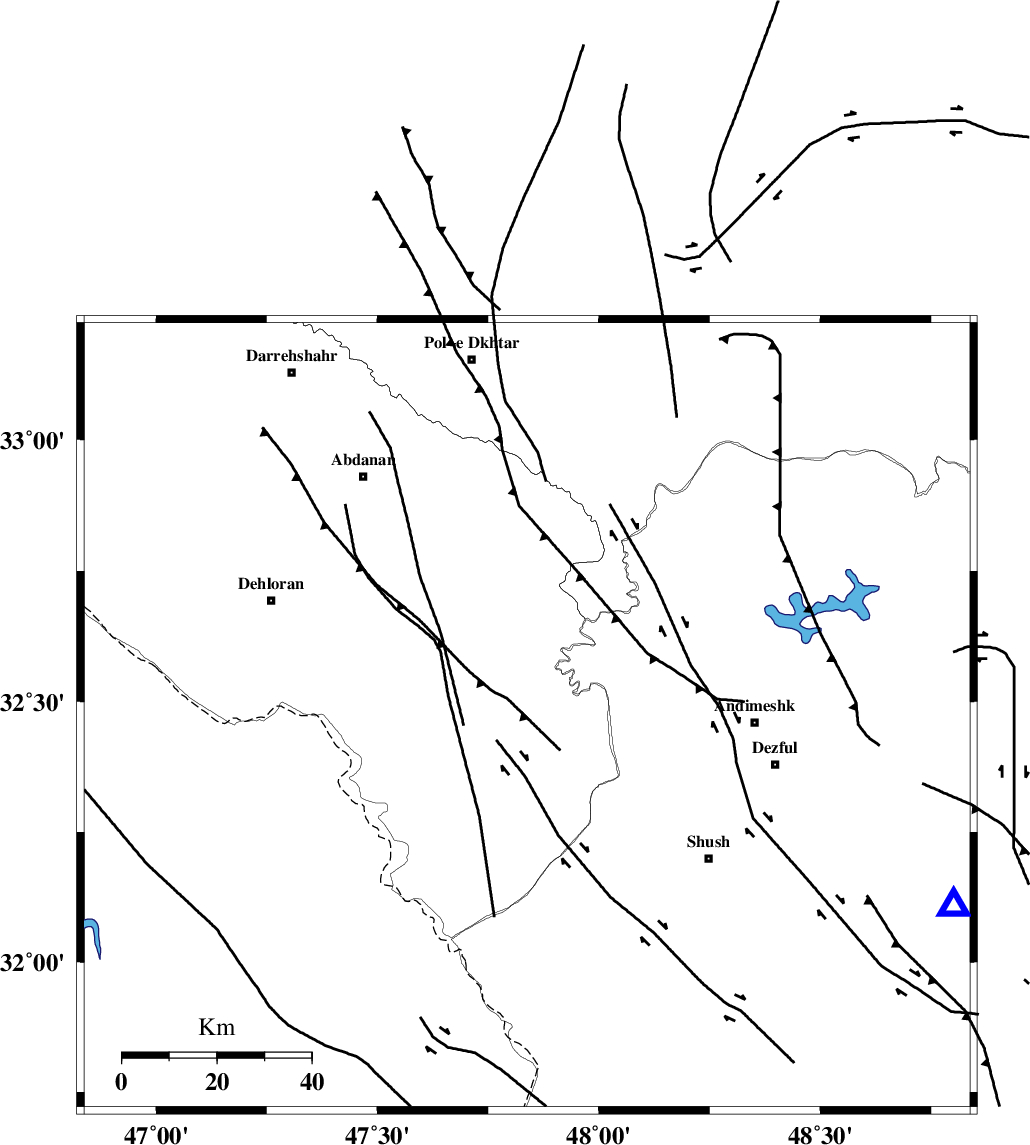

Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 33 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 33 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 34 km | |
| Number of Phases | 10 |
| RMS | 0.4 |
| Number of Stations | 8 |
| Error in Latitude | >7.6 km |
| Error in Longitude | 3.2 km |
| Error in Depth | 9.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 115136 | IIEES | ILBA | E | 125.2 | 0.53 | 2017-04-07 17:52:59 | 2017-04-17 05:23:00 | n |
| 115137 | IIEES | ILBA | N | 50.3 | 0.3 | 2017-04-07 17:53:00 | 2017-04-17 05:23:00 | n |
| 115138 | IIEES | KHMZ | N | 32.5 | 0.4 | 2017-04-07 17:53:10 | 2017-04-17 05:23:00 | n |
| 115139 | IIEES | SNGE | E | 21 | 0.46 | 2017-04-07 17:53:26 | 2017-04-17 05:23:00 | n |
| 115140 | IIEES | ASAO | E | 22.4 | 0.53 | 2017-04-07 17:53:29 | 2017-04-17 05:23:00 | n |
| 115141 | IIEES | ASAO | N | 21.4 | 0.43 | 2017-04-07 17:53:29 | 2017-04-17 05:23:00 | n |
| 115142 | IIEES | GHVR | E | 13.3 | 0.24 | 2017-04-07 17:53:50 | 2017-04-17 05:23:00 | n |
| 115143 | IIEES | GHVR | N | 12.4 | 0.49 | 2017-04-07 17:54:01 | 2017-04-17 05:23:00 | n |
| 115144 | IIEES | NASN | E | 3.9 | 0.61 | 2017-04-07 17:54:19 | 2017-04-17 05:23:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2017-04-07 17:52:28 | -0.24 | y | 199 | 310 | |||
| IIEES | ILBA | N | S | E | 2017-04-07 17:52:51 | 0.12 | y | 199 | 310 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-04-07 17:52:34 | 0.6 | y | 243 | 54 | |||
| IIEES | SNGE | Z | Pn | E | 2017-04-07 17:52:40 | -0.13 | y | 294 | 351 | |||
| IIEES | ASAO | Z | Pn | E | 2017-04-07 17:52:42 | 0.2 | y | 307 | 41 | |||
| IIEES | ASAO | E | Sg | E | 2017-04-07 17:53:22 | -0.22 | y | 307 | 41 | |||
| IIEES | GHVR | Z | Pn | E | 2017-04-07 17:52:51 | -0.09 | y | 387 | 54 | |||
| IIEES | NASN | Z | Pn | E | 2017-04-07 17:53:01 | -0.58 | y | 468 | 84 | |||
| IIEES | THKV | Z | Pn | E | 2017-04-07 17:53:03 | 0.59 | y | 474 | 35 | |||
| IIEES | DAMV | Z | Pn | E | 2017-04-07 17:53:07 | -0.42 | y | 518 | 46 | |||
