Magnitude |
:3.9 |
| Date & Time (UTC) | 2017-03-24 13:39:54.3 |
| Date & Time (Local) | 1396/1/4 18:09:54.3 |

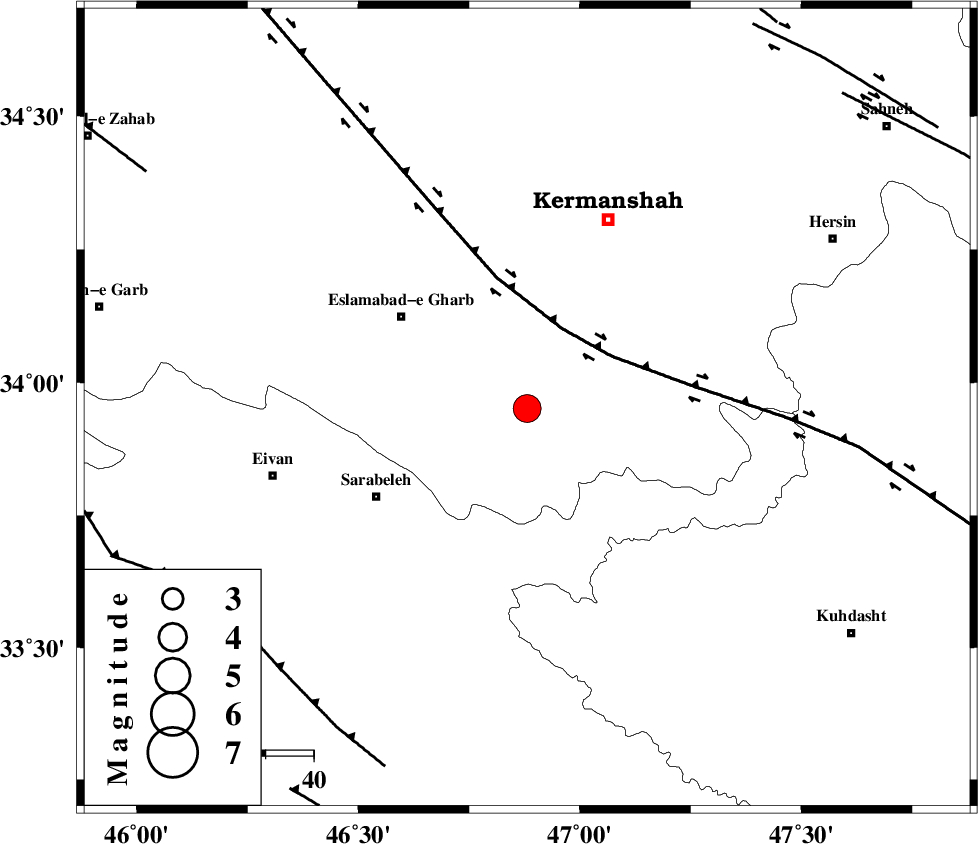

| Location | Lat:33.951 Lon: 46.881 |
| Region | Kermanshah Province, 32 km South-East of Eslam Abad-E-Gharb |
Nearest Cities |
|
| 9 km North of Qale-ye harsam, Kermanshah Province | |
| 10 km North East of Hamil, Kermanshah Province | |
| 12 km North of Darbid-e mansuri, Kermanshah Province | |
| 21 km South East of Qale-ye shahin, Kermanshah Province | |
| 23 km North West of Chenar, Kermanshah Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 18 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 75 km | |
| SAHANEH_F (Length: 77 km) , Distance to epicenter: 93 km | |
| Number of Phases | 15 |
| RMS | 0.3 |
| Number of Stations | 13 |
| Error in Latitude | >6.4 km |
| Error in Longitude | 6.2 km |
| Error in Depth | 9.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 114365 | IIEES | SNGE | E | 3312.1 | 0.65 | 2017-03-24 13:40:40 | 2017-03-27 08:57:00 | n |
| 114366 | IIEES | SNGE | N | 2988.4 | 0.74 | 2017-03-24 13:40:45 | 2017-03-27 08:57:00 | n |
| 114367 | IIEES | KHMZ | E | 323.9 | 0.59 | 2017-03-24 13:41:33 | 2017-03-27 08:57:00 | n |
| 114368 | IIEES | ASAO | E | 324.3 | 0.43 | 2017-03-24 13:41:32 | 2017-03-27 08:57:00 | n |
| 114369 | IIEES | ASAO | N | 295.7 | 0.43 | 2017-03-24 13:41:33 | 2017-03-27 08:57:00 | n |
| 114370 | IIEES | GHVR | N | 164.7 | 0.6 | 2017-03-24 13:42:08 | 2017-03-27 08:57:00 | n |
| 114371 | IIEES | GHVR | E | 174.4 | 0.5 | 2017-03-24 13:42:10 | 2017-03-27 08:57:00 | n |
| 114372 | IIEES | THKV | N | 101.1 | 0.65 | 2017-03-24 13:42:14 | 2017-03-27 08:57:00 | n |
| 114373 | IIEES | GIDE | E | 191.4 | 1.08 | 2017-03-24 13:42:07 | 2017-03-27 08:57:00 | n |
| 114374 | IIEES | GIDE | N | 225 | 0.81 | 2017-03-24 13:42:10 | 2017-03-27 08:57:00 | n |
| 114375 | IIEES | DAMV | N | 43 | 0.7 | 2017-03-24 13:42:21 | 2017-03-27 08:57:00 | n |
| 114376 | IIEES | DAMV | E | 49.8 | 0.8 | 2017-03-24 13:42:42 | 2017-03-27 08:57:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SNGE | Z | Pg | E | 2017-03-24 13:40:16 | -0.49 | y | 134 | 19 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-03-24 13:40:38 | 0.35 | y | 286 | 94 | |||
| IIEES | ASAO | Z | Pn | E | 2017-03-24 13:40:41 | 2.01 | n | 4 | 297 | 76 | ||
| IIEES | GHVR | Z | Pn | E | 2017-03-24 13:40:52 | -0.04 | y | 406 | 80 | |||
| IIEES | GHVR | N | Sg | E | 2017-03-24 13:41:48 | 0.12 | y | 406 | 80 | |||
| IIEES | THKV | Z | Pn | E | 2017-03-24 13:40:55 | 0.1 | y | 425 | 58 | |||
| IIEES | GIDE | Z | Pn | E | 2017-03-24 13:41:03 | 8.26 | n | 4 | 429 | 39 | ||
| IIEES | CHTH | Z | Pn | E | 2017-03-24 13:40:57 | 0.1 | y | 444 | 60 | |||
| IIEES | DAMV | Z | Pn | E | 2017-03-24 13:41:04 | -0.15 | y | 502 | 67 | |||
| IIEES | MAKU | Z | Pn | E | 2017-03-24 13:41:21 | 0.65 | y | 631 | 342 | |||
| IIEES | AHRM | Z | Pn | E | 2017-03-24 13:41:28 | -0.38 | y | 703 | 142 | |||
| IIEES | YZKH | Z | Pn | E | 2017-03-24 13:41:33 | -0.51 | y | 739 | 101 | |||
| IIEES | GHIR | Z | Pn | E | 2017-03-24 13:41:46 | -2.32 | n | 4 | 856 | 136 | ||
| IIEES | MRVT | Z | Pn | E | 2017-03-24 13:41:57 | 0.49 | y | 928 | 61 | |||
| IIEES | TABS | Z | Pn | E | 2017-03-24 13:41:59 | -0.15 | y | 948 | 89 | |||
