Magnitude |
:2.9 |
| Date & Time (UTC) | 2017-03-14 06:13:48.4 |
| Date & Time (Local) | 1395/12/24 09:43:48.4 |

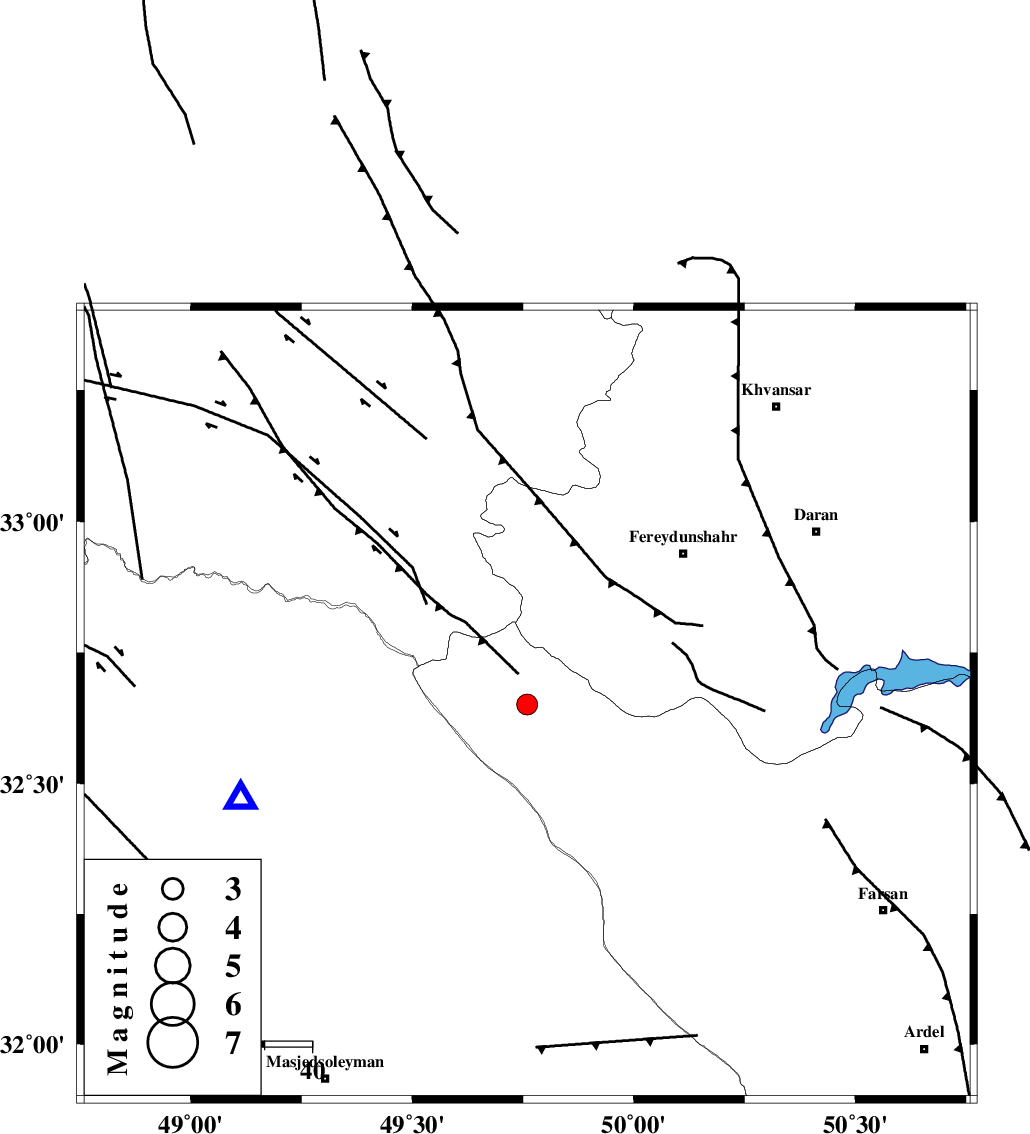

| Location | Lat:32.651 Lon: 49.759 |
| Region | Chaharmahal Bakhtiari Province, 40 km North-West of Chelgard |
Nearest Cities |
|
| 11 km West of Durak, Chaharmahal Bakhtiari Province | |
| 24 km South of Masir, Esfahan Province | |
| 38 km South West of Sibak, Esfahan Province | |
| 39 km South East of Parchal, Lorestan Province | |
| 40 km North West of Chelgard, Chaharmahal Bakhtiari Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 2 km | |
| ARDAL_F (Length: 170 km) , Distance to epicenter: 11 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 28 km | |
| Number of Phases | 14 |
| RMS | 0.2 |
| Number of Stations | 12 |
| Error in Latitude | >3 km |
| Error in Longitude | 2.9 km |
| Error in Depth | 6.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 114001 | IIEES | KHMZ | E | 165.6 | 0.38 | 2017-03-14 06:14:25 | 2017-03-15 07:39:00 | n |
| 114002 | IIEES | ASAO | E | 80.7 | 0.51 | 2017-03-14 06:14:58 | 2017-03-15 07:39:00 | n |
| 114003 | IIEES | ASAO | N | 71 | 0.51 | 2017-03-14 06:14:58 | 2017-03-15 07:39:00 | n |
| 114004 | IIEES | GHVR | N | 44.4 | 0.51 | 2017-03-14 06:15:05 | 2017-03-15 07:39:00 | n |
| 114005 | IIEES | GHVR | E | 89.8 | 0.71 | 2017-03-14 06:15:09 | 2017-03-15 07:39:00 | n |
| 114006 | IIEES | NASN | N | 28.7 | 0.51 | 2017-03-14 06:15:10 | 2017-03-15 07:39:00 | n |
| 114007 | IIEES | ILBA | E | 104.3 | 0.57 | 2017-03-14 06:15:35 | 2017-03-15 07:39:00 | n |
| 114008 | IIEES | ILBA | N | 32.2 | 0.51 | 2017-03-14 06:15:36 | 2017-03-15 07:39:00 | n |
| 114009 | IIEES | SNGE | E | 26.4 | 0.87 | 2017-03-14 06:15:42 | 2017-03-15 07:39:00 | n |
| 114010 | IIEES | SNGE | N | 27 | 0.52 | 2017-03-14 06:15:44 | 2017-03-15 07:39:00 | n |
| 114011 | IIEES | THKV | E | 16.1 | 0.65 | 2017-03-14 06:15:46 | 2017-03-15 07:39:00 | n |
| 114012 | IIEES | THKV | N | 18 | 0.47 | 2017-03-14 06:15:50 | 2017-03-15 07:39:00 | n |
| 114013 | IIEES | DAMV | E | 16 | 0.68 | 2017-03-14 06:15:45 | 2017-03-15 07:39:00 | n |
| 114014 | IIEES | DAMV | N | 15.6 | 0.61 | 2017-03-14 06:15:51 | 2017-03-15 07:39:00 | n |
| 114015 | IIEES | YZKH | E | 8.2 | 0.81 | 2017-03-14 06:16:07 | 2017-03-15 07:39:00 | n |
| 114016 | IIEES | YZKH | N | 7.1 | 0.41 | 2017-03-14 06:16:08 | 2017-03-15 07:39:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pg | E | 2017-03-14 06:14:06 | -2.97 | n | 4 | 122 | 9 | ||
| IIEES | ASAO | Z | Pn | E | 2017-03-14 06:14:22 | -0.17 | y | 212 | 7 | |||
| IIEES | GHVR | Z | Pn | E | 2017-03-14 06:14:26 | 0.33 | y | 245 | 34 | |||
| IIEES | GHVR | E | Sg | E | 2017-03-14 06:14:57 | -0.08 | y | 245 | 34 | |||
| IIEES | NASN | Z | Pn | E | 2017-03-14 06:14:31 | 0.06 | y | 286 | 86 | |||
| IIEES | NASN | N | Sg | E | 2017-03-14 06:15:09 | -0.18 | y | 286 | 86 | |||
| IIEES | ILBA | Z | Pn | E | 2017-03-14 06:14:39 | -0.24 | y | 349 | 289 | |||
| IIEES | SNGE | Z | Pn | E | 2017-03-14 06:14:39 | 0.03 | y | 351 | 321 | |||
| IIEES | THKV | Z | Pn | E | 2017-03-14 06:14:42 | -0.09 | y | 377 | 16 | |||
| IIEES | CHTH | Z | Pn | E | 2017-03-14 06:14:44 | 0.34 | y | 383 | 19 | |||
| IIEES | DAMV | Z | Pn | E | 2017-03-14 06:14:44 | 0.02 | y | 388 | 31 | |||
| IIEES | YZKH | Z | Pn | E | 2017-03-14 06:14:53 | 0.22 | y | 455 | 92 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-03-14 06:14:53 | 0.04 | y | 457 | 348 | |||
| IIEES | SHRO | Z | Pn | E | 2017-03-14 06:15:20 | -0.4 | y | 685 | 55 | |||
