Magnitude |
:3 |
| Date & Time (UTC) | 2017-02-24 14:20:37.1 |
| Date & Time (Local) | 1395/12/6 17:50:37.1 |

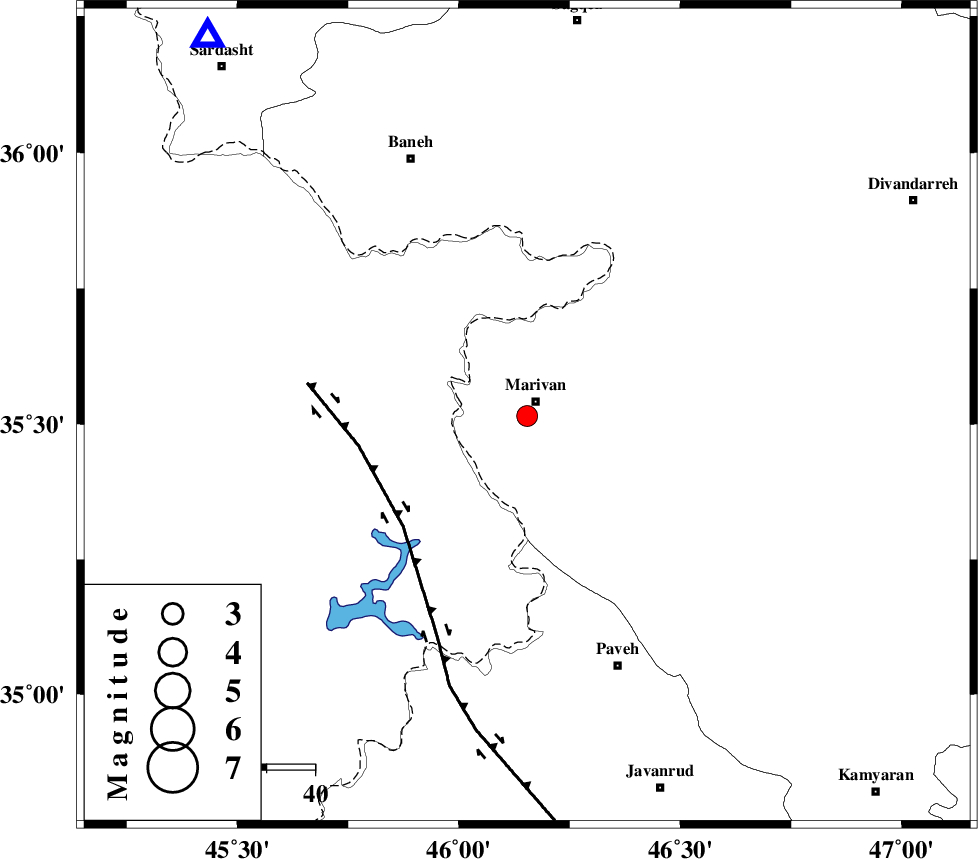

| Location | Lat:35.515 Lon: 46.154 |
| Region | Kurdistan Province, 3 km of Marivan |
Nearest Cities |
|
| 3 km of Marivan, Kurdistan Province | |
| 7 km North of Ney, Kurdistan Province | |
| 7 km North of Kanidinar, Kurdistan Province | |
| 10 km of Bardeh rasheh, Kurdistan Province | |
| 18 km South of Savoji, Kurdistan Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 9 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 34 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 78 km | |
| Number of Phases | 9 |
| RMS | 0.1 |
| Number of Stations | 8 |
| Error in Latitude | >2 km |
| Error in Longitude | 3.4 km |
| Error in Depth | 6.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 113548 | IIEES | SNGE | E | 444 | 0.84 | 2017-02-24 14:21:18 | 2017-02-25 06:09:00 | n |
| 113549 | IIEES | SNGE | N | 357.7 | 0.36 | 2017-02-24 14:21:19 | 2017-02-25 06:09:00 | n |
| 113550 | IIEES | ZNJK | N | 27.1 | 0.54 | 2017-02-24 14:21:52 | 2017-02-25 06:09:00 | n |
| 113551 | IIEES | ASAO | E | 16.2 | 0.4 | 2017-02-24 14:22:32 | 2017-02-25 06:09:00 | n |
| 113552 | IIEES | ASAO | N | 14.1 | 0.56 | 2017-02-24 14:22:46 | 2017-02-25 06:09:00 | n |
| 113553 | IIEES | GIDE | N | 55.5 | 0.63 | 2017-02-24 14:22:26 | 2017-02-25 06:09:00 | n |
| 113554 | IIEES | GIDE | E | 43.5 | 0.86 | 2017-02-24 14:22:30 | 2017-02-25 06:09:00 | n |
| 113555 | IIEES | KHMZ | E | 20.2 | 0.45 | 2017-02-24 14:22:42 | 2017-02-25 06:09:00 | n |
| 113556 | IIEES | KHMZ | N | 19.7 | 0.38 | 2017-02-24 14:22:42 | 2017-02-25 06:09:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SNGE | Z | Pg | E | 2017-02-24 14:20:55 | -2.04 | n | 4 | 118 | 113 | ||
| IIEES | ILBA | Z | Pn | E | 2017-02-24 14:21:10 | -0.09 | y | 210 | 179 | |||
| IIEES | ZNJK | Z | Pn | E | 2017-02-24 14:21:17 | -0.15 | y | 262 | 60 | |||
| IIEES | ZNJK | N | Sg | E | 2017-02-24 14:21:51 | 0 | y | 262 | 60 | |||
| IIEES | ASAO | Z | Pn | E | 2017-02-24 14:21:32 | 1.34 | n | 4 | 369 | 106 | ||
| IIEES | GIDE | Z | Pn | E | 2017-02-24 14:21:30 | -0.01 | y | 372 | 64 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-02-24 14:21:34 | 0.22 | y | 401 | 118 | |||
| IIEES | MAKU | Z | Pn | E | 2017-02-24 14:21:40 | 0.1 | y | 446 | 343 | |||
| IIEES | DAMV | Z | Pn | E | 2017-02-24 14:21:50 | 0 | y | 527 | 87 | |||
