Magnitude |
:2.8 |
| Date & Time (UTC) | 2017-02-21 08:17:17.8 |
| Date & Time (Local) | 1395/12/3 11:47:17.8 |

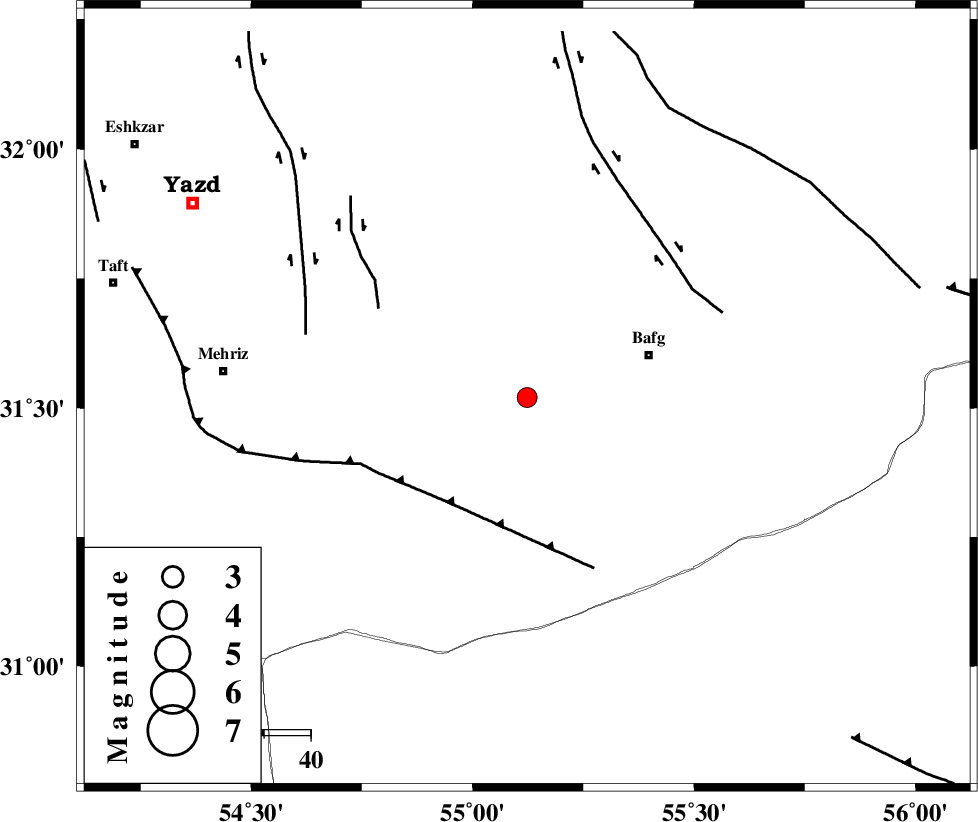

| Location | Lat:31.521 Lon: 55.123 |
| Region | Yazd Province, 28 km -West of Bafq |
Nearest Cities |
|
| 28 km West of Bafq, Yazd Province | |
| 28 km North East of Bahadoran, Yazd Province | |
| 32 km South West of Mobarake, Yazd Province | |
| 65 km East of Mehriz, Yazd Province | |
| 67 km South West of Kushk, Yazd Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ANAR_F (Length: 91 km) , Distance to epicenter: 4 km | |
| ANAR_F (Length: 127 km) , Distance to epicenter: 5 km | |
| DARIVAN_F (Length: 131 km) , Distance to epicenter: 39 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 6 |
| Error in Latitude | >3.9 km |
| Error in Longitude | 3.2 km |
| Error in Depth | 7.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 113497 | IIEES | KRBR | E | 174.7 | 0.32 | 2017-02-21 08:18:27 | 2017-02-21 08:45:00 | n |
| 113498 | IIEES | KRBR | N | 142.2 | 0.38 | 2017-02-21 08:18:28 | 2017-02-21 08:45:00 | n |
| 113499 | IIEES | NASN | N | 23.5 | 0.55 | 2017-02-21 08:18:36 | 2017-02-21 08:45:00 | n |
| 113500 | IIEES | TABS | N | 27.4 | 0.54 | 2017-02-21 08:18:53 | 2017-02-21 08:45:00 | n |
| 113501 | IIEES | BSRN | E | 14.4 | 0.51 | 2017-02-21 08:18:55 | 2017-02-21 08:45:00 | n |
| 113502 | IIEES | BSRN | N | 14.1 | 0.7 | 2017-02-21 08:19:10 | 2017-02-21 08:45:00 | n |
| 113503 | IIEES | SHRT | E | 2.6 | 0.58 | 2017-02-21 08:19:57 | 2017-02-21 08:45:00 | n |
| 113504 | IIEES | SHRT | N | 2.1 | 0.62 | 2017-02-21 08:19:57 | 2017-02-21 08:45:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | YZKH | Z | Pg | E | 2017-02-21 08:17:36 | -0.25 | y | 109 | 333 | |||
| IIEES | KRBR | Z | Pn | E | 2017-02-21 08:17:54 | -0.15 | y | 232 | 137 | |||
| IIEES | NASN | Z | Pn | E | 2017-02-21 08:17:58 | 0.34 | y | 260 | 304 | |||
| IIEES | NASN | E | Sg | E | 2017-02-21 08:18:31 | -0.03 | y | 260 | 304 | |||
| IIEES | TABS | Z | Pn | E | 2017-02-21 08:18:03 | 0.19 | y | 301 | 38 | |||
| IIEES | BSRN | Z | Pn | E | 2017-02-21 08:18:13 | -0.01 | y | 382 | 82 | |||
| IIEES | SHRT | Z | P | E | 2017-02-21 08:18:32 | -0.1 | y | 539 | 63 | |||
