Magnitude |
:2.8 |
| Date & Time (UTC) | 2017-02-20 14:39:44.6 |
| Date & Time (Local) | 1395/12/2 18:09:44.6 |

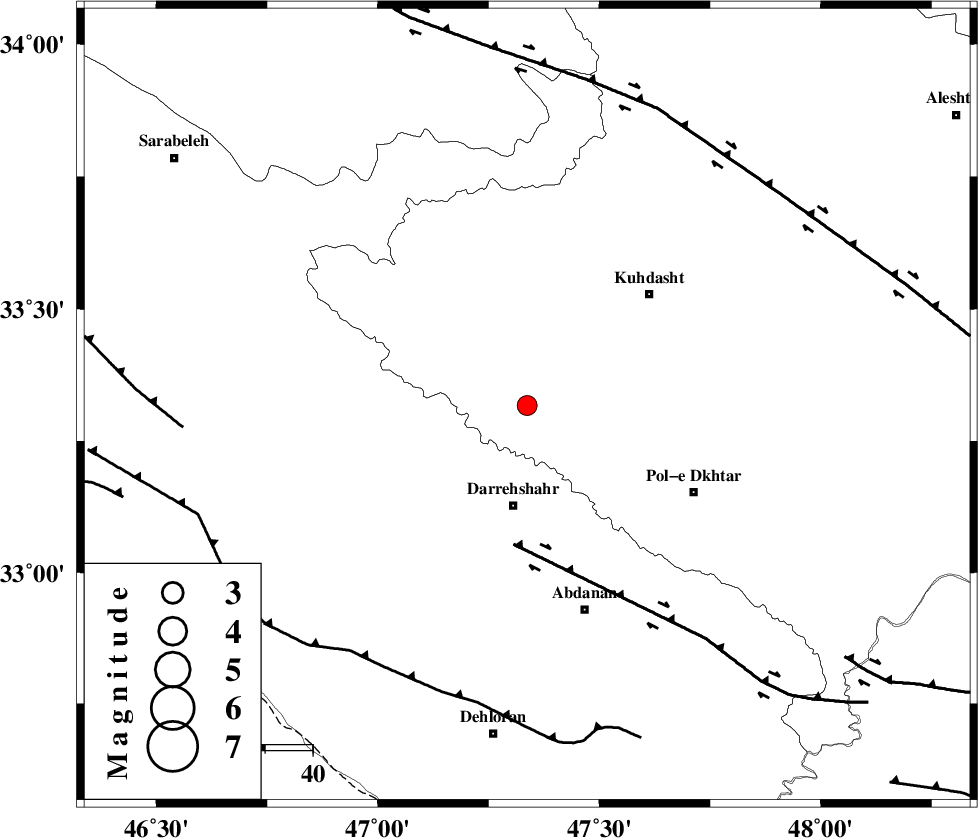

| Location | Lat:33.317 Lon: 47.337 |
| Region | Lorestan Province, 21 km North of Darreh Shahr |
Nearest Cities |
|
| 10 km of Kunani, Lorestan Province | |
| 10 km West of Suri, Lorestan Province | |
| 13 km North West of Chaqabol, Lorestan Province | |
| 17 km North of Dashtabad-e olia, Ilam Province | |
| 19 km South of Garab, Lorestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 29 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 63 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 68 km | |
| Number of Phases | 9 |
| RMS | 0.3 |
| Number of Stations | 8 |
| Error in Latitude | >7 km |
| Error in Longitude | 7.9 km |
| Error in Depth | 9.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 113462 | IIEES | ILBA | E | 414.9 | 0.59 | 2017-02-20 14:40:31 | 2017-02-21 06:19:00 | n |
| 113463 | IIEES | ILBA | N | 196.7 | 0.59 | 2017-02-20 14:40:31 | 2017-02-21 06:19:00 | n |
| 113464 | IIEES | SNGE | E | 63.6 | 0.43 | 2017-02-20 14:40:51 | 2017-02-21 06:19:00 | n |
| 113465 | IIEES | SNGE | N | 71.8 | 0.6 | 2017-02-20 14:40:54 | 2017-02-21 06:19:00 | n |
| 113466 | IIEES | KHMZ | N | 35.8 | 0.57 | 2017-02-20 14:41:01 | 2017-02-21 06:19:00 | n |
| 113467 | IIEES | KHMZ | E | 32.9 | 0.67 | 2017-02-20 14:41:06 | 2017-02-21 06:19:00 | n |
| 113468 | IIEES | ASAO | N | 48.5 | 0.55 | 2017-02-20 14:41:13 | 2017-02-21 06:19:00 | n |
| 113469 | IIEES | ASAO | E | 23.5 | 0.71 | 2017-02-20 14:41:16 | 2017-02-21 06:19:00 | n |
| 113470 | IIEES | GHVR | E | 29.6 | 0.58 | 2017-02-20 14:41:45 | 2017-02-21 06:19:00 | n |
| 113471 | IIEES | GHVR | N | 18.6 | 0.68 | 2017-02-20 14:41:47 | 2017-02-21 06:19:00 | n |
| 113472 | IIEES | GIDE | E | 8.2 | 0.74 | 2017-02-20 14:42:10 | 2017-02-21 06:19:00 | n |
| 113473 | IIEES | GIDE | N | 7.3 | 0.37 | 2017-02-20 14:42:24 | 2017-02-21 06:19:00 | n |
| 113474 | IIEES | DAMV | E | 4.5 | 0.49 | 2017-02-20 14:42:10 | 2017-02-21 06:19:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2017-02-20 14:40:03 | 0.19 | y | 110 | 288 | |||
| IIEES | SNGE | Z | Pg | E | 2017-02-20 14:40:16 | -0.1 | y | 197 | 0 | |||
| IIEES | KHMZ | Z | Pn | E | 2017-02-20 14:40:23 | -0.08 | y | 248 | 78 | |||
| IIEES | ASAO | Z | Pn | E | 2017-02-20 14:40:27 | 0.08 | y | 284 | 60 | |||
| IIEES | ASAO | N | S | E | 2017-02-20 14:40:59 | 0.45 | y | 284 | 60 | |||
| IIEES | GHVR | Z | Pn | E | 2017-02-20 14:40:40 | 0.2 | y | 384 | 69 | |||
| IIEES | CHTH | Z | Pn | E | 2017-02-20 14:40:48 | -0.32 | y | 451 | 49 | |||
| IIEES | GIDE | Z | Pn | E | 2017-02-20 14:41:00 | 10.42 | n | 4 | 464 | 30 | ||
| IIEES | DAMV | Z | Pn | E | 2017-02-20 14:40:53 | -0.67 | y | 497 | 58 | |||
